Jaw Crusher Wear Parts: field notes, specs, and what buyers are really asking

If you run rock, you burn through wear metal. That’s just the game. After a week poking around quarries from Hebei to the Gulf, I kept hearing the same refrain: “give us reliable jaw crusher parts, and don’t make us babysit the machine.” Fair enough. Based out of Tower C 603, MCC World Grand Plaza, No.66, XiangTai Road, Shijiazhuang, Hebei, China, the team behind “Jaw Crusher Wear Parts” has been pushing manganese chemistries and heat-treatment tweaks that—surprisingly—do move the needle.

What’s trending in the pit (and the plant)

• Shift from Mn13 to Mn18Cr2 and Mn22 for abrasive granite/basalt; ceramic-reinforced inserts for concrete recycling.
• Digital traceability (heat numbers, QR-coded MTRs), ISO 9001-driven process control, faster lead times.
• Profiles tuned to feed: standard corrugated, super-tooth, flat, and deep-rib for sticky limestone.

Core specs at a glance

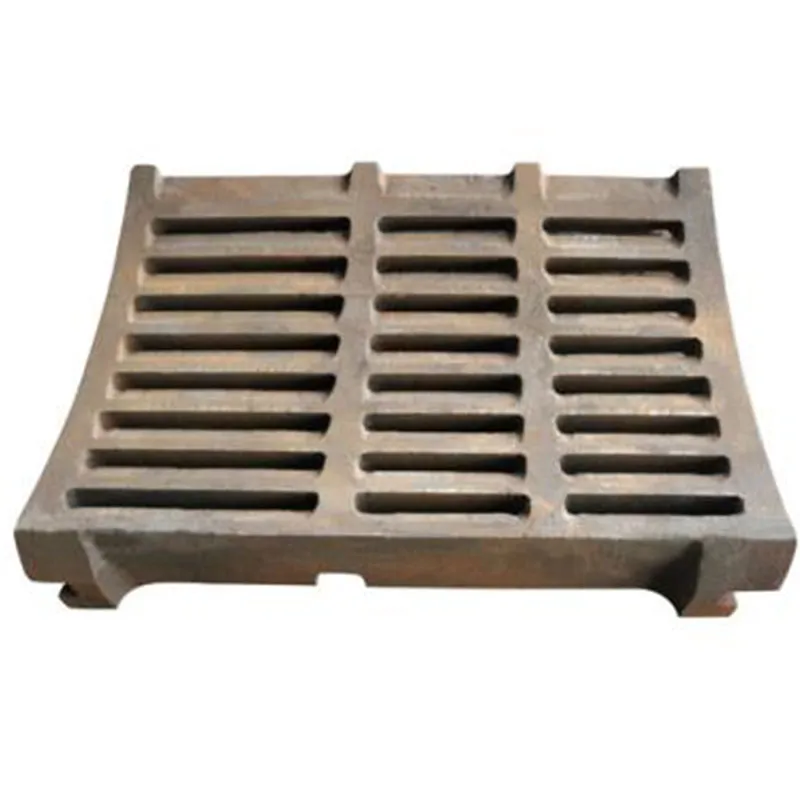

The lineup includes fixed/movable jaw dies, cheek plates, toggle plates—and a new Manganese Alloy Sieve Plate for under-crusher screening. In fact, many customers say the sieve plate cuts blinding in damp aggregates.

Part	Material/Grade	Hardness	Typical Service Life	Notes
Fixed/Movable Jaw Dies	Mn18Cr2 / Mn22 (ASTM A128)	≈ HB 200–230 (work-hardens to ≈ HB 500)	≈ 300–600 h (real-world use may vary)	Corrugated or super-tooth profiles
Cheek Plates	Mn13/18 or AR450	HB 360–480 (AR)	≈ 500–900 h	Reversible for extended life
Toggle Plate	Mild Steel / Cast Iron	—	Safety element	Designed to fail under overload
Manganese Alloy Sieve Plate	Mn18 with wear lugs	Work-hardening surface	Up to 2× vs. standard screens	Reduces plugging in wet fines

How they’re made (short version)

• Materials: Hadfield steel (ASTM A128/A128M), optional martensitic with Cr-Mo, and ceramic-reinforced variants for impact + abrasion balance.
• Methods: green-sand or lost-foam casting; solution treatment at ≈1050°C; rapid water quench; stress relief; CNC finishing.
• Testing: UT/MT per ASTM E709/E165; hardness per ISO 6506/6508; abrasion per ASTM G65; dimensional checks to drawing tolerances.
• Traceability: heat number on casting; MTRs; ISO 9001 quality system.

Applications and field feedback

Scenarios: abrasive granite/basalt pits, iron-ore primaries, C&D recycling (rebar-laced concrete), and sticky limestone (where deep-rib profiles help). One quarry manager told me, “we switched to Mn18Cr2 jaw crusher parts with super-tooth; throughput rose about 6% and we stopped flipping dies every other weekend.” Lab abrasion (ASTM G65 Proc. A) showed ≈12–18% lower mass loss vs. their previous set.

Vendor snapshot (what buyers compare)

Vendor	Core Alloys	Lead Time	Customization	Certs	Noted for
Zhongyue Mining (Hebei)	Mn13/18/22, ceramic-reinforced	≈ 2–4 weeks	Profiles, TIC inserts, logos	ISO 9001, CE	Balanced price-to-life
Global OEM A	Proprietary Mn + TIC	4–8 weeks	OEM-only	ISO 9001	High consistency
Aftermarket EU B	Mn18/22	2–5 weeks	Limited	ISO 9001	Regional stocking

Case note: granite operation, 1100×700 jaw

After switching to Mn18Cr2 super-tooth jaw crusher parts with TIC-reinforced zones, a mid-size quarry reported: +7% throughput, liner life from ≈220 h to ≈380 h, and 18% lower cost/ton. Vibration stayed within ISO 10816 green zone, and G65 abrasion showed ≈15% improvement over the prior set. To be honest, results depend on feed and nip angle—but the trend’s hard to ignore.

Customization checklist

• Profile: standard, super-tooth, flat, deep-rib (sticky feeds).
• Alloy: Mn13 for impact, Mn18/Mn22 for abrasion; martensitic or ceramic-reinforced for mixed recycling.
• Fitment: drill pattern, seating face, logo casting; supply as-matched sets with cheek plates.

Certifications: ISO 9001 quality management; CE marking where applicable. Maintenance tip: monitor CSS drift and flip jaw crusher parts before step formation skyrockets power draw.

References

1. ASTM A128/A128M – Standard Specification for Steel, Austenitic Manganese. https://www.astm.org/a0128_a0128m-19.html
2. ASTM G65 – Standard Test Method for Measuring Abrasion Using the Dry Sand/Rubber Wheel Apparatus. https://www.astm.org/g0065-16.html
3. ISO 6508-1 – Rockwell hardness test. https://www.iso.org/standard/69194.html
4. ISO 10816 – Mechanical vibration — Evaluation of machine vibration. https://www.iso.org/standard/38062.html
