The Crawler Surface Down-the-Hole (DTH) Drilling Rig is a revolutionary solution designed to meet the demands of modern mining and construction industries. Developed by Zen Young Technology Hebei Co., Ltd., this advanced drilling system combines robust engineering, cutting-edge technology, and exceptional versatility to deliver unmatched performance in challenging environments. Whether you're working on open-pit mining projects, infrastructure development, or specialized drilling operations, this rig is engineered to optimize efficiency, reduce downtime, and ensure precision. Below, we explore its core features, technical specifications, and real-world applications.

Product Overview

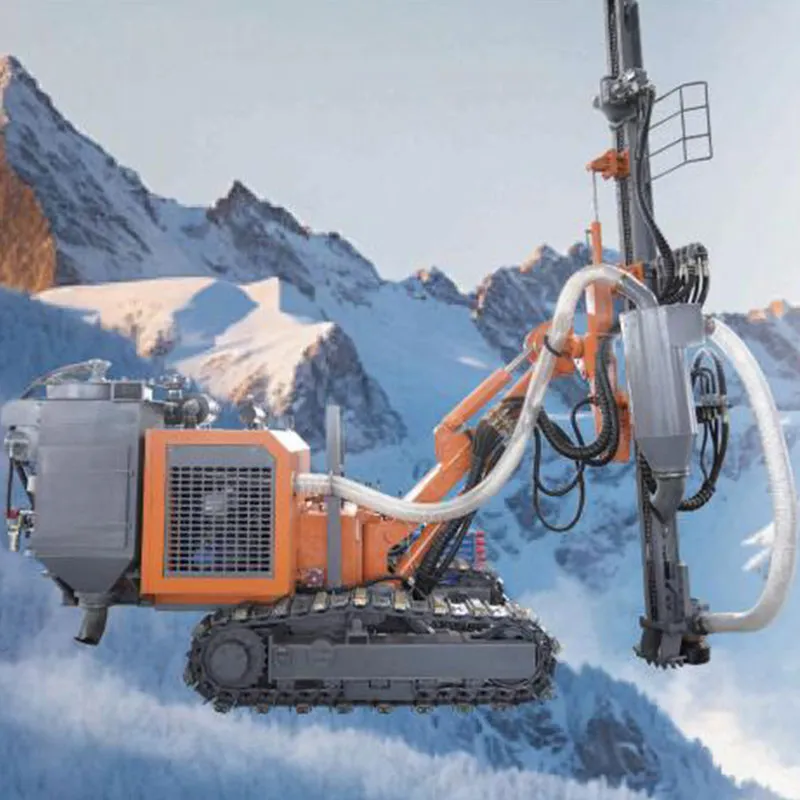

The Crawler Surface DTH Drilling Rig is a next-generation drilling system designed for heavy-duty tasks. Its crawler chassis ensures stability and mobility across rugged terrains, while its down-the-hole (DTH) hammer technology enables deep penetration and high drilling speeds. The rig’s compact design allows for easy transportation and setup, making it ideal for remote job sites. With a focus on cost-effectiveness and adaptability, this equipment is tailored to meet the needs of diverse industries, including mining, construction, and civil engineering.

Key Features

• Robust Crawler Chassis: The rig’s crawler system provides excellent traction and stability, even on uneven or soft ground. This design ensures safe and efficient operation in challenging environments.
• Advanced DTH Hammer Technology: Utilizing down-the-hole (DTH) hammer systems, the rig achieves high drilling efficiency and deeper hole penetration, reducing the need for multiple drilling cycles.
• High Mobility: With a travelling speed of 3-4 km/h, the rig can quickly move between job sites, minimizing setup time and maximizing productivity.
• Customizable Drill Pipe Sizes: The rig supports 64/76/89 mm drill pipes, allowing operators to adapt to varying geological conditions and drilling requirements.
• Powerful Hydraulic System: The hydraulic system ensures smooth operation and precise control, enhancing drilling accuracy and reducing mechanical wear.

Technical Specifications

Parameter	Specification
Diesel Engine	YC$DK100-T304 88KW
Hole Depth	60m
Drill Pipe Sizes	64/76/89 mm × 3000 mm
DTH Hammer	4'/5'/6'
Feed Speed	26 m/min
Rotation Torque (Max)	2,000 N·m / 7,000 N·M
Rotation Speed	0-160 rpm
Feed Force	55 kN
Feed Type	Chain Cylinder
Maximum Pull-Up Force	90 kN
Tramming Speed (Max)	3-4 km/h
Gradient	25°
Total Weight	6,340 kg
Transport Dimensions (L x W x H)	7,000 × 2,280 × 2,400 mm

Applications

The Crawler Surface DTH Drilling Rig is a versatile tool suitable for a wide range of applications. Its ability to handle both medium and deep blasting holes makes it ideal for open-pit mining and quarrying. In construction projects, it is used for foundation excavation, water conservancy, and power station development. The rig’s adaptability extends to specialized tasks such as anchor hole drilling, pressure measurement holes, and drainage hole creation.

Key Applications:

• Mining and Quarrying: Efficiently drill blast holes for rock fragmentation in open-pit mines and quarries.
• Infrastructure Development: Support foundation excavation for buildings, bridges, and highways.
• Water and Energy Projects: Create water wells and exploration drilling for hydroelectric and geothermal energy projects.
• Defense and Transportation: Drill specialized rock holes for military infrastructure and railway construction.

Company Background: Zen Young Technology Hebei Co., Ltd.

Zen Young Technology Hebei Co., Ltd. is a leading manufacturer of heavy-duty drilling equipment, with a strong focus on innovation and quality. The company has established itself as a trusted supplier in the mining and construction industries, offering solutions that combine advanced engineering with cost-effective design. With a commitment to customer satisfaction and technological advancement, Zen Young Technology has become a key player in the global market for drilling rigs.

As a high-tech enterprise, Zen Young Technology adheres to strict quality control standards and invests heavily in research and development. The Crawler Surface DTH Drilling Rig is a testament to the company’s dedication to creating reliable, durable, and efficient equipment. Their products are widely used in open-pit projects across mining, construction, and civil engineering, reflecting their expertise in meeting the evolving needs of the industry.

Why Choose Zen Young Technology?

When selecting a drilling rig, factors such as performance, durability, and cost-effectiveness are critical. The Crawler Surface DTH Drilling Rig excels in all these areas, offering:

• High Efficiency: The rig’s advanced DTH technology and powerful hydraulic system ensure rapid drilling rates and reduced operational time.
• Adaptability: With multiple drill pipe sizes and adjustable rotation torque, the rig can handle a wide range of geological conditions.
• Reliability: The sturdy crawler chassis and robust construction ensure long-term performance in harsh environments.
• Cost-Effective: The rig’s high cost-performance ratio makes it a valuable investment for businesses seeking to maximize ROI.

Conclusion

The Crawler Surface DTH Drilling Rig by Zen Young Technology Hebei Co., Ltd. is a versatile and powerful solution for modern drilling challenges. Its advanced design, technical specifications, and wide range of applications make it an essential tool for industries requiring efficient and reliable drilling. Whether you’re working on mining operations, construction projects, or specialized drilling tasks, this rig is engineered to deliver exceptional performance and durability.

For more information about the Crawler Surface DTH Drilling Rig or to explore other products from Zen Young Technology, visit the official product page or the company website.
