Large Valve Body: field notes from the heavy-flow frontier

If you’ve spent time around dams, penstocks, or big hydraulic circuits, you know the heart of any valve isn’t the actuator or the trim—it’s the Large Valve Body. That casting carries the pressure, dictates flow paths, and frankly, takes the blame when the system groans. Lately I’ve noticed a quiet shift: owners want longer life, cleaner cast surfaces, and traceability end to end. Not marketing fluff—actual mill certs, UT maps, and hydrostatic data.

What it is, and why ZG20Mn matters

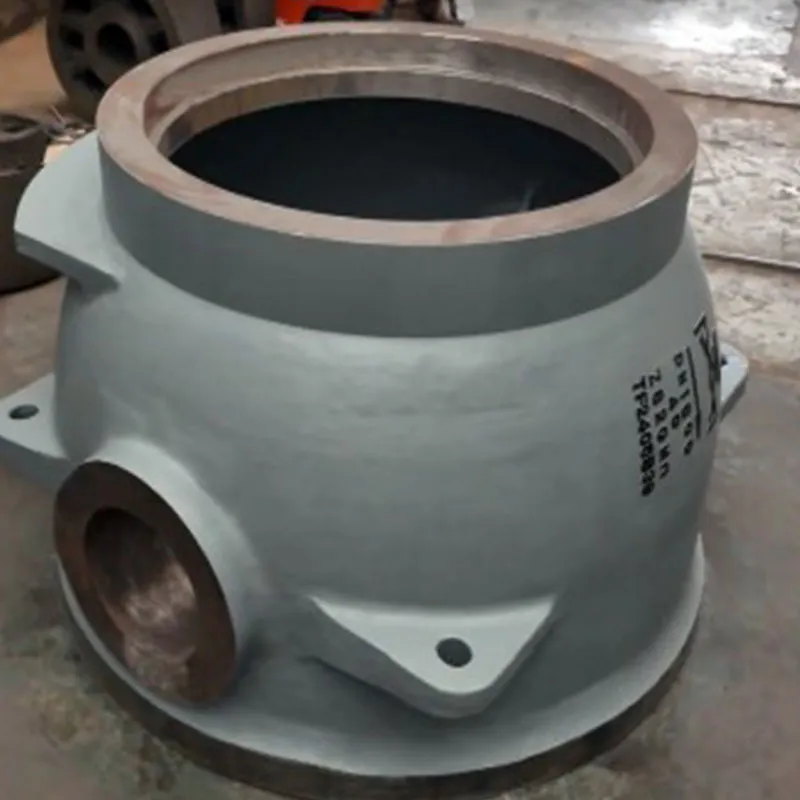

This Large Valve Body is a ZG20Mn cast steel component—think ~0.2% C with manganese for toughness—used as the main flow-control shell. In water conservancy and hydraulic engineering, ZG20Mn earns its keep for weldability and impact resistance. The design channels big flows, trims turbulence, and keeps seat loads in spec across temperature swings. To be honest, most failures I’ve seen weren’t exotic; they were porosity clusters, thin-wall hot spots, or sloppy machining. The fix is process, not magic.

Typical specs (real-world use may vary)

Material	ZG20Mn cast steel, heat-treated (normalizing + tempering)
Size range	≈ DN 200–2000 (8"–80"); custom geometries on request
Pressure rating	PN 10–40 (Class 150–300 ≈), per ASME B16.34 envelope
Corrosion allowance	≈ 2–3 mm, project-specific
Surface finish	Machined sealing faces Ra ≤ 3.2 μm; coated external shell
Tests	Hydrotest 1.5×PN body, 1.1×PN seat (ISO 5208 / API 598). UT/MT on critical sections (ASTM A609 / E709)
Service life	≈ 25–40 years in treated water; site conditions drive outcomes

Process flow (where the quality really happens)

• Materials: certified ZG20Mn with heat-number traceability.
• Molding & pouring: controlled sand-casting with riser/vent simulation to limit porosity.
• Heat treatment: normalize + temper to stabilize microstructure.
• Rough/finish machining: CNC boring of seat bores; gasket faces to flatness spec.
• NDT: UT/MT/RT on welds and stress nodes, per drawing hold points.
• Pressure testing: ISO 5208 / API 598 protocols; data logged and signed.
• Coating: epoxy or zinc-rich primer; potable-water options available.
• Documentation: MTCs, test reports, and QC dossier packed with the part.

Where it’s used

Hydropower intakes, municipal water lines, flood-control gates, pump stations, and high-flow irrigation. A Large Valve Body also shows up in mining process water loops—though abrasion liners might be wise, depending on slurry content.

Vendor snapshot (quick, imperfect comparison)

Vendor	Testing Coverage	Lead Time	Customization	Certs
MiningZY (Hebei)	Body hydro + seat test + UT/MT standard; RT on request	≈ 6–12 weeks	Geometry, coatings, test scope	ISO 9001; test to ISO 5208/API 598
Vendor A (generic)	Hydro only on body; seat test optional	≈ 10–16 weeks	Limited	ISO 9001
Vendor B (generic)	Hydro + spot UT	≈ 8–14 weeks	Moderate	ISO 9001/14001

Real-world case

A Northern irrigation authority swapped in a Large Valve Body on a DN1400 gate-valve refurbishment. With tighter bore concentricity and upgraded coating, seat leakage dropped to “Rate A” under ISO 5208—zero visible leakage—after 1.1×PN seat testing. Operators, somewhat surprised, said noise levels fell too.

Customization and support

• Design tweaks: wall thickness tuning, boss pads for instruments, alternative bonnet interfaces.
• Coatings: NSF/ANSI 61-type potable options, high-build epoxies, or metallizing for splash zones.
• Docs: ITPs, weld maps, and data books signed off before shipment.

Customer remarks? Many buyers say documentation arrives “clean and complete,” which—speaking as someone who reads these for fun—saves commissioning time.
